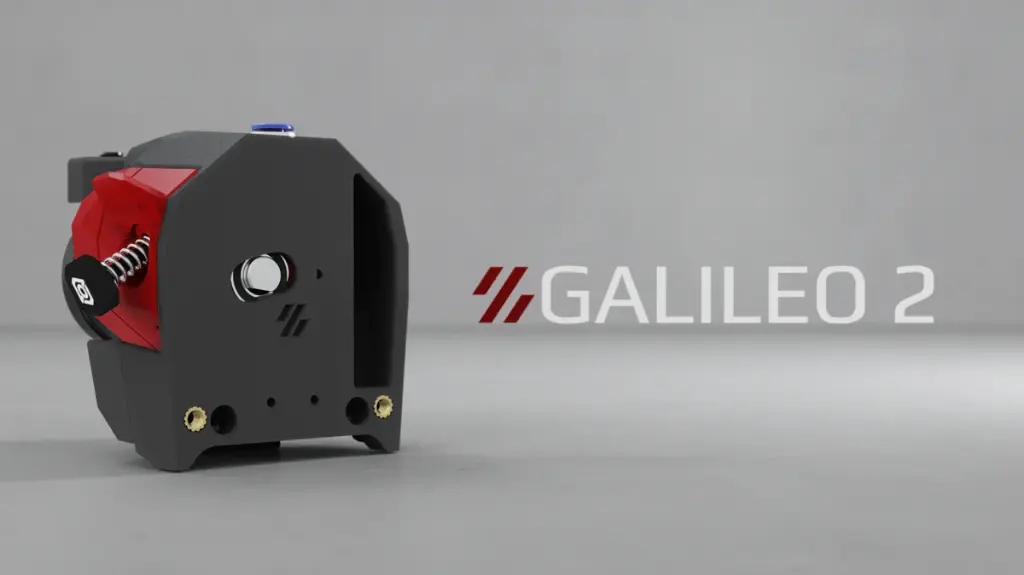

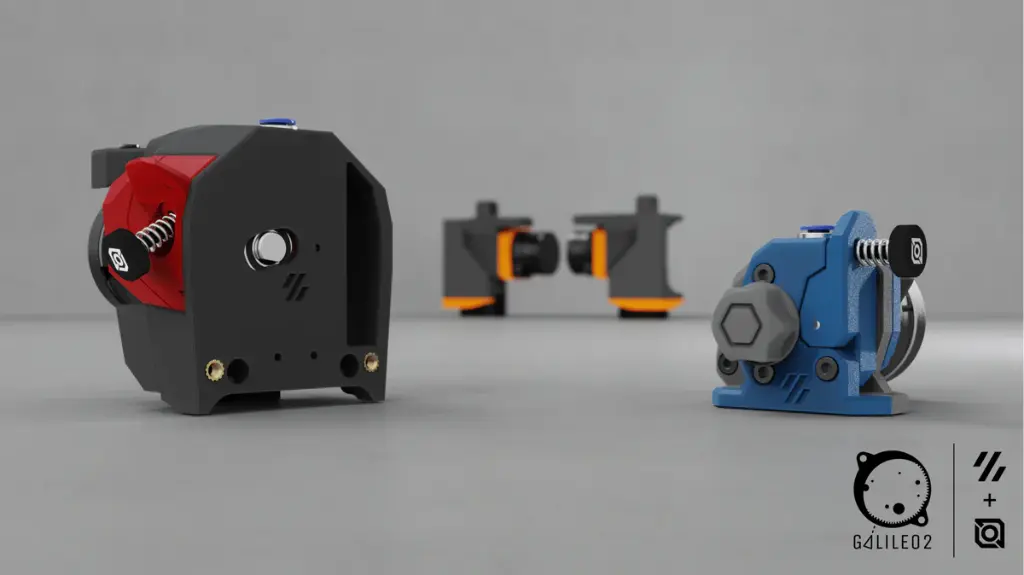

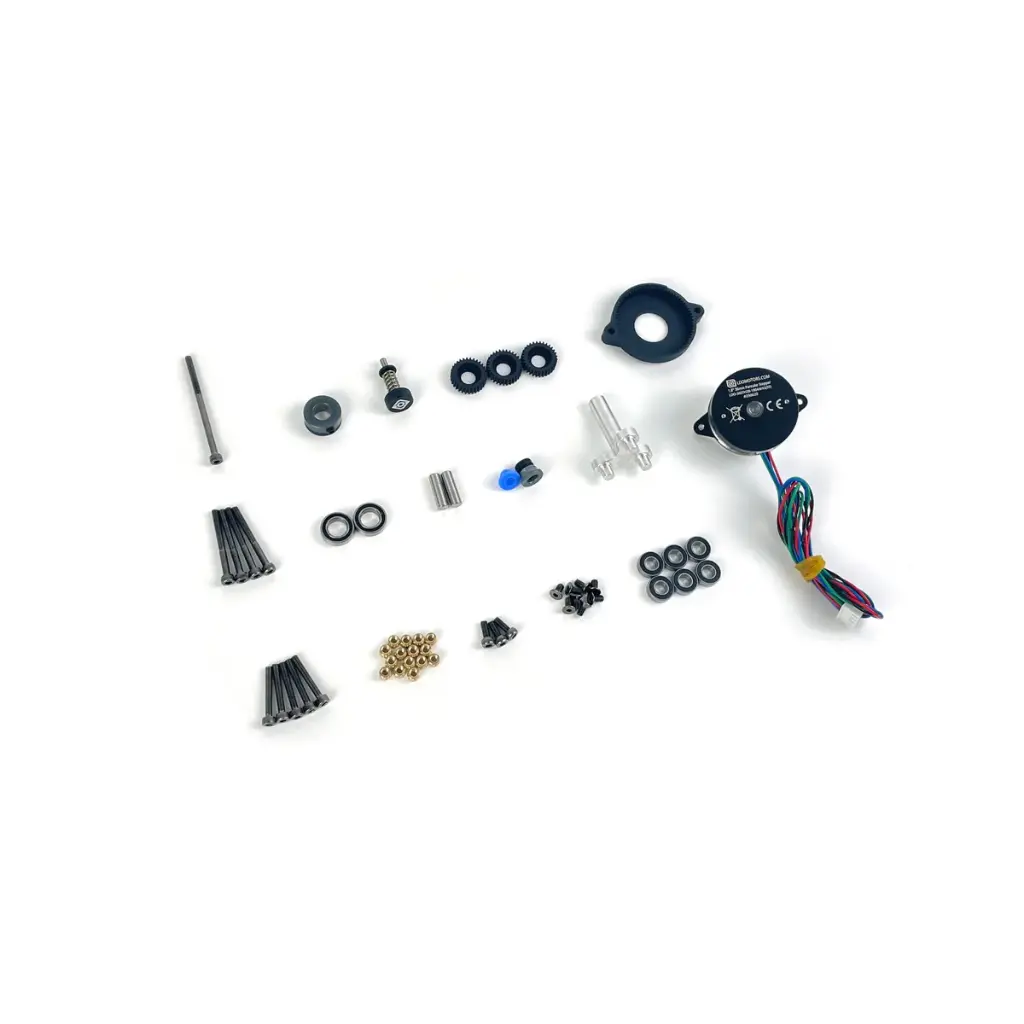

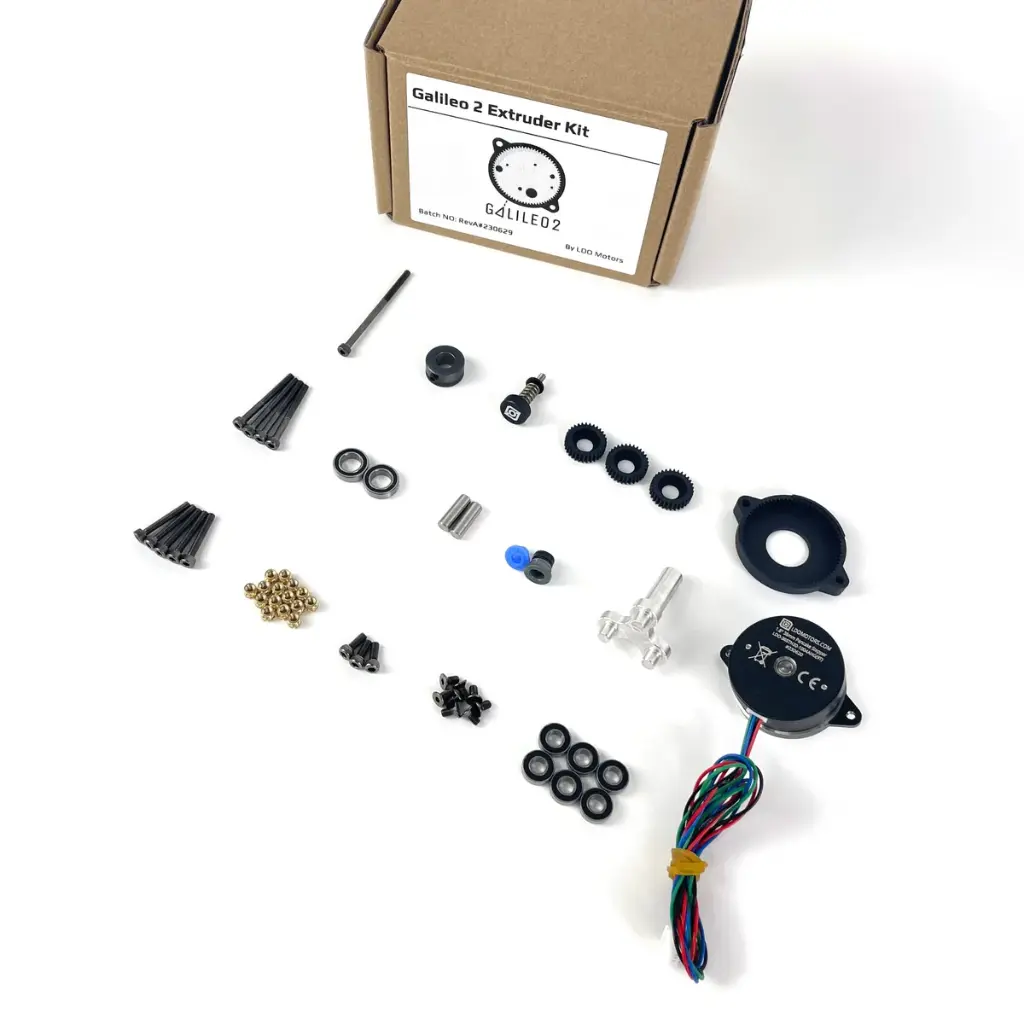

LDO Galileo 2 Extruder kit
Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer.
Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.
Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.
- Custom 9T stepper with a taller spur gear resulting in 20% higher contact surface area than existing 10T stepper designs, resulting in better wear characteristics and power transfer.
- Proper meshing of gears due to number of stepper teeth being divisible by number of planets (9T sun / 3 planets), which gives even loading on the planets / sun gear and improves wear characteristics and power transfer. Previous designs with 10T steppers had uneven loading on the planet gears.
- G2XL uses Nema17 (LDO-42STH40-1684AC) which are considerably larger and provide more holding torque
